SM16704 IC Protocol and datasheet
Time:2023-07-02
Views:19
一、Feature ：
Built-in power clamp, support input power-supply voltage 5~24V
OUTR/ G/ B constant current value defaults to 17mA
OUTR/ G/ B power-on state: off
OUTR/ G/ B port withstand voltage 26V
OUTR/ G/ B output grayscale: 256 level
Display data synchronization refresh in the same frame
Single-line return-to-zero code SID data protocol
Data serial cascade transmission, strong anti-interference ability
Signal transfer rate: 800kbps
Package: SOP8
二、Description ：

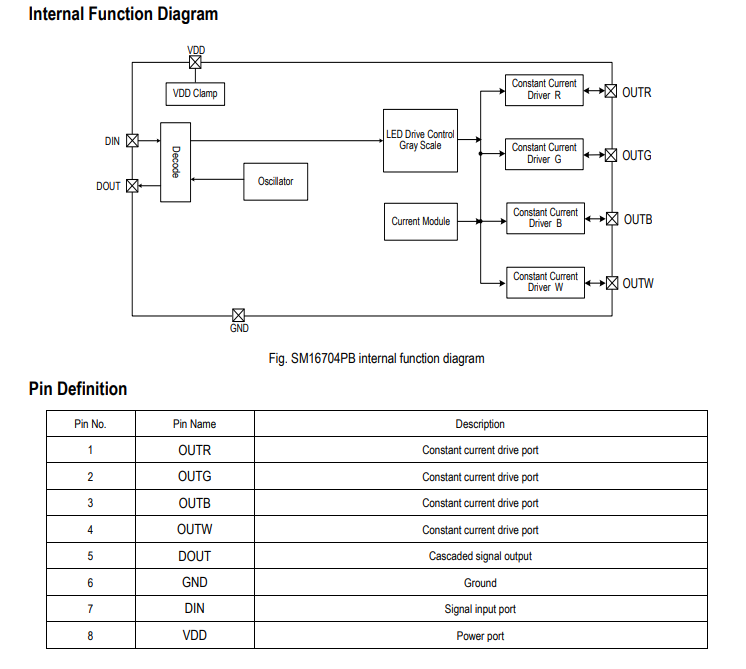

The SM16704PB is a single-line transmission 4-channel output LED driver, which adopts single-line return-to-zero code SID data protocol.
The SM16704PB default output current of the OUT R/G/B/W port is 17mA.
The peripheral components of the chip are few, simple and reliable.
三、The protocol Please check SM16704PB datasheet
Built-in power clamp, support input power-supply voltage 5~24V
OUTR/ G/ B constant current value defaults to 17mA
OUTR/ G/ B power-on state: off
OUTR/ G/ B port withstand voltage 26V
OUTR/ G/ B output grayscale: 256 level
Display data synchronization refresh in the same frame
Single-line return-to-zero code SID data protocol
Data serial cascade transmission, strong anti-interference ability
Signal transfer rate: 800kbps
Package: SOP8
二、Description ：
The SM16704PB is a single-line transmission 4-channel output LED driver, which adopts single-line return-to-zero code SID data protocol.
The SM16704PB default output current of the OUT R/G/B/W port is 17mA.
The peripheral components of the chip are few, simple and reliable.
三、The protocol Please check SM16704PB datasheet
