LED Pixel Tube

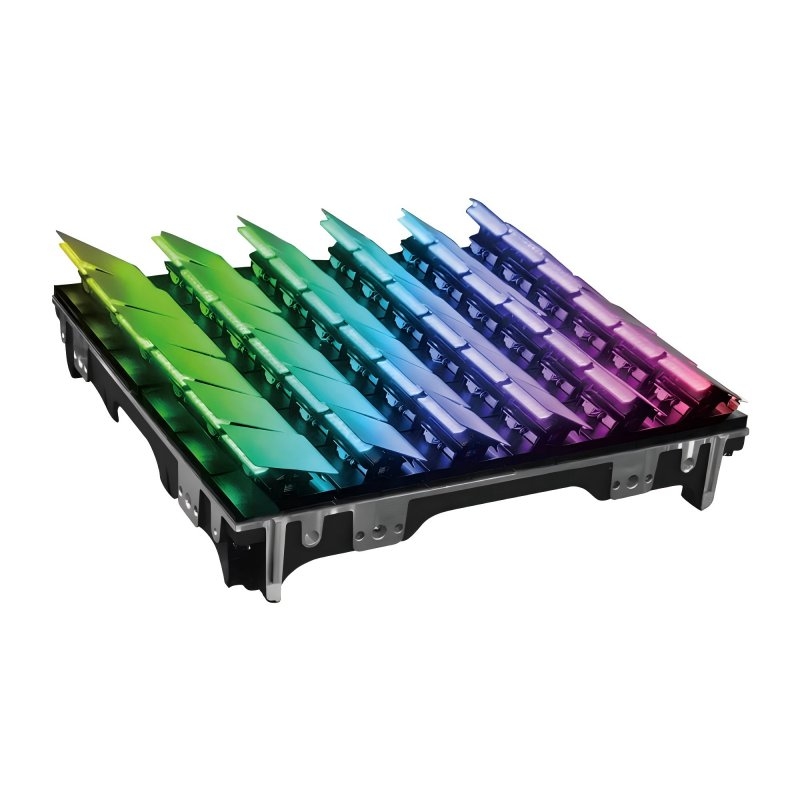

Scalelike matrix light
  • Scalelike matrix light
  • Scalelike matrix light
  • Scalelike matrix light
  • Scalelike matrix light
  • Scalelike matrix light

Scalelike matrix light

1.DC24V low voltage power supply, DMX signal input;
2.Automatic calibration (reset) after power-on;
3.The 60-degree floating angle can be controlled arbitrarily, and the speed changes with the push rod speed
4.DMX signal control, can be used in series;
5.The controller each port can support 128 CW&WW Scalelike Matrix;
6.The controller each port can support 128  Scalelike Matrix;
7.The cabinet installation is simple and convenient, and the area coverage effect is better;
8.It can work with ARTNET software (MAD-SHOW, MADRIX), and supports offline use;
9.Support program remote upgrade;
        Working voltage(AC):A110-220V                            Max Power:180W

        LED type:3030RGB                                                Number of cascade units:254PCS

        Control mode:Artnet                                               Weight:10KG

        Channel :RGBW                                                     Size:500*500*110mm


    Scalelike Matrix Cabinet installation
    The action module has a magnetic suction + lock to double fix the boxConnect the signal output port
    of the cabinet with the signal input port of the action module ;


    The back of the action module is magnetically fixed close to the cabinet;


    Follow the instructions to turn the lock on the back of the Scalelike Matrix to complete
    the fixed installation;

    Remove the screws on the back of the module,Separate the action module and rotate
    the module 90°;


    Cabinet splicing


    After aligning the cabinet, press the lock into the cabinet and turn the lock to fix according
    to the direction of the lock;


    Press the green unlock switch to open the lock;


    Scalelike Matrix cabinet wiring


    Power cable cascading: the output end of the previous cabinet is connected to the input
    end of the next cabinet to complete the power cascading;(The power cable can connect
    max 12pcs cabinets together)


    Signal cable cascading: the signal output of the previous cabinet is connected to the signal
    input of the next cabinet to complete the signal cascading;
    Note: The left side of the cabinet is the signal input port, and the right side is the signal
    output port. Please connect them correctly.


    Button function
    Click:To check whether the cabinet can work normally
    Double-click:Completing coding for one cabinet
    Press and hold for 3 seconds:The button will change from green to red. Release the button then will complete codin for all cabinets.
    Press and hold for 10 seconds:Reset to factory setting

    Flight case packing


    Channel list

    Channel                     Function                    Function Description

    Channel 1                      R                           Indicates the red in the effect, 000 is the original effect,
                                                                        255 indicates all red in the display effect

    Channel 2                      G                           Indicates the green in the effect, 000 is the original effect,
                                                                        255 indicates all green in the display effect

    Channel 3                      B                           Indicates the blue in the effect, 000 is the original effect,
                                                                        255 indicates all blue in the display effect Reset to factory setting

    Channel 4     Control angle and speed       Control angle: 0-255 values are evenly distributed with a 60°
                                                                        rotation angle;
                                                                        Control speed: the speed changes according to the change rate
                                                                        of 0-255 value;
