Material : Die-cast aluminum
Input Voltage : DC12-24V
Power Efficiency : 90%
Beam Angle : 120º
Led chip : USA Bridgelux 45mil
Power(Single LED) : 12W instegrated RGB led chip
LED Qty : 1pcs -12W-RGBW high power
Led Control: Standard DMX512 Protocol. DMX512 differential signal (A ,B) control.

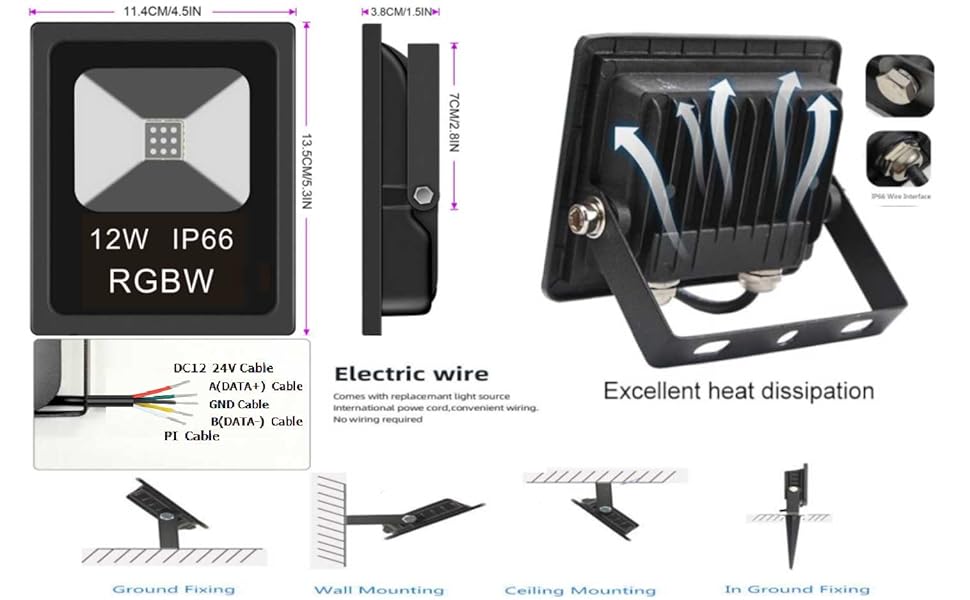

Size: 135*115*40mm
Connecting cables:5PIN-M16 waterproof terminal

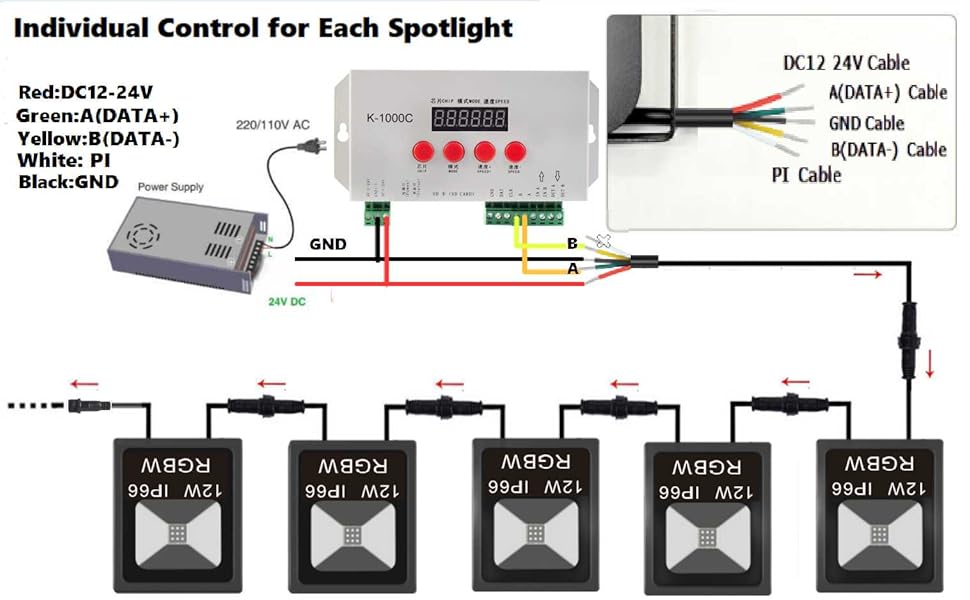

Red wire: DC12-24V+；Black wire: GND ; Yellow wire: B(data-); Green wire: A(data+) ; White wire: PI;
IP Code: IP66 water proof
Wave length (NM): R-620-625nm ; G-520-525nm ; B-460-465nm ;W-3000-7000K,
Luminous Flux:R-110-130Lm ; G-160-180Lm ; B-130-150Lm ;W-250-300Lm,

Features:
1.Adopting to high power integrated RGBW LED, which ensures light is more uniform,light efficiency is higher.
2.Standard DMX512 signal input,external control.
3.Built-in 350mA constant current driver design to ensure light for a stable work
4.Using high transmittance tempered glass,transimittance 93%
5.Complying with CE&ROHS, not contain mercury or other harmful substance
6.Lifespan is over 35000 hours
7.May realize "online address grogramming
Applications :
Used in various building walls of light color decoration,stage,meeting rooms,display light, ancient building, cultural plaza etc.
